contacts ：Manager LIU
Telephone ：13276362033
QQ:1294284350
Company Address：The second floor of the first accelerator of the Optoelectronic Industry Park, No. 155 Incubation Second Lane, High tech Zone, Weifang City, Shandong Province
update time ：2025-04-02
Model：WX-EL1
Product Price: Electronic Negotiation
Product brand: Wanxiang Environment
el detector product introduction:
EL detector, also known as photovoltaic test instrument, photovoltaic power station tester, portable EL detector, is used to detect internal defects of photovoltaic solar panels. It can better help users complete product quality inspection and control production and installation risks.
The portable EL detector is equipped with a 20 million-level infrared camera that can effectively help users complete photovoltaic panel quality inspection. The whole machine is equipped with a lighter test power supply and tripod module, making it more convenient to carry and transport, and is not affected by air transport.
Application scenarios:
Suitable for photovoltaic power station component arrival inspection, as well as component quality testing in warehouses/laboratories/factories.
Recognizable defect types:
Hidden crack | scrap | fragments | broken gate | black heart | Virtual soldering |
process contamination | low efficiency slice | Black border | sintering | Excessive | perforation |
Product Features and Advantages:
1. Easy to carry and suitable for mobile power station testing
2. Fully automatic focusing with higher precision and better definition
3. The 20 million-level infrared camera has a more thorough picture quality
4. On-site inspection of program-controlled constant current power supply is safer and more stable
5. Tablet computer image transmission viewing does not require a camera to view the inspection image
6. The 1.5-meter lightweight tripod is light and easy to move.
7. The whole module is as low as 5kg and can be carried in a backpack
Application areas:
Scenes | Pre-installation testing of factory components, warehouse components, and power station on-site components, |
test | Daytime: outdoor anti-infrared darkroom test; indoor no-sunlight environment test Night: Direct tripod test, light and moonlight have no effect |
object | Crystalline silicon components, thin film components (can be customized) |
quantity | Single module imaging inspection |
Specifications:
module | Configuration | Specification |
camera module | Pixel | 20 million pixels |
resolution | 4928x3264 _ _ | |
chip | 23.6 x 15.6 mm, CMOS sensor | |
Accuracy | 1.5mm / pixel _ | |
light shielding | Light, moonlight, starlight, slight indoor sunlight | |
Detection area | 3000 mm *2000 mm | |
lens | 18-55 mm | |
focus mode | Fully autofocus | |
Battery | 700 mah | |
Memory card | 32 GB, Wi-Fi wireless | |
data cable | 10 cm | |
Power module | Output current | 0 ~ 5 A adjustable |
Current accuracy | 0.1A _ _ _ | |
The output voltage | 0 ~ 60 V adjustable | |
Voltage accuracy | 0.1 V | |
control Panel | LED digital display program control panel | |
Function settings | The power-on parameters are preset and saved; the output is powered on with one click. | |
circuit protection | Short circuit protection, open circuit protection, current backflow protection, overheating protection, electrostatic protection, current and voltage adaptive matching photovoltaic panels | |
On the wire | 10 cm AC three-hole input cable | |
DC line | 3 m DC output cable, MC 4 -port docking assembly | |
software | Image transmission APP | View and download detection pictures |
bracket system | Detection bracket | 1.5m aluminum alloy bracket |
Detection PTZ | Bracket integrated installation, 360- degree rotation | |
Usage environment | Deserts, plateaus, rooftops, hills, slopes, factories, rooftops, snowfields, greenhouses, agriculture-solar complementation, fish-light complementation, scenery-solar complementation, and other environments | |
Warranty and after-sales service | 2 -year warranty, 24 H response, 72 H fault solution, spare parts coordination | |
configuration list:
serial number | name | Specification | quantity | unit |
1 | EL camera | 20 million pixels | 1 | tower |
2 | EL infrared lens | 18-55mm | 1 | tower |
4 | Image transmission module | Wi-Fi memory card | 1 | set |
5 | Data cable/charger | standard | 1 | set |
6 | camera battery | standard | 2 | piece |
7 | Detection bracket | 1.5 m | 1 | set |
8 | DC regulated power supply | 0～60V, 0～5A output; AC220 power supply input | 1 | tower |
9 | On the wire | 3 meters | 1 | root |
10 | Equipment three-proof box | standard | 1 | set |
11 | EL image transmission APP | View in-camera detection images wirelessly | 1 | set |
* | Applicable scene | Photovoltaic power station component testing before installation; warehouse component testing; | ||
* | other | The device is fully automatic focusing; can be carried by air |
The role of the micro-weather station system

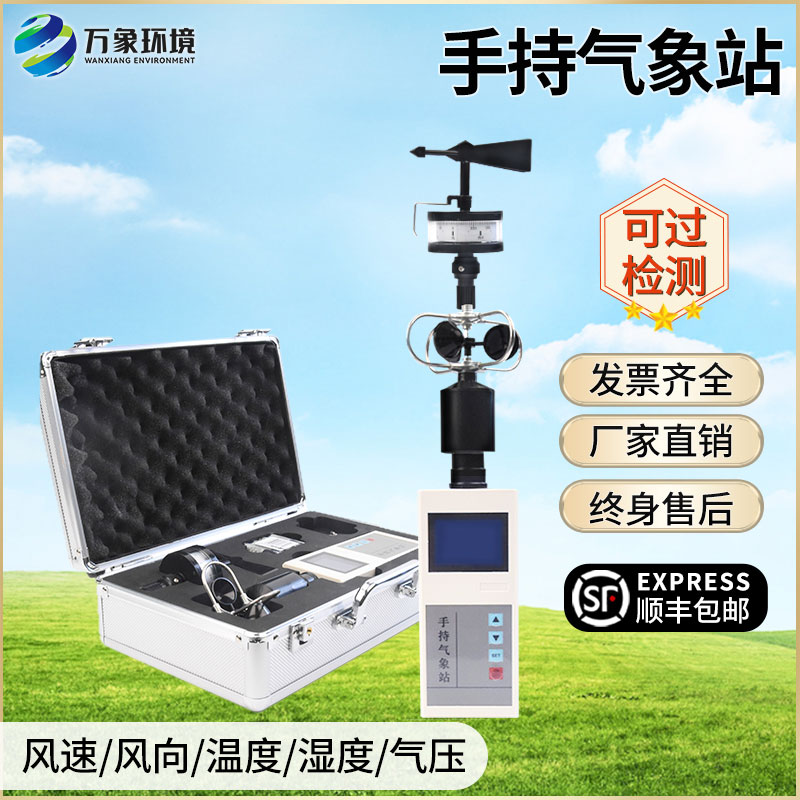

2024-10-25Pocket wearable handheld weather stations can be used for emergency management
